수동제어 밸브
>
Product >
방향제어밸브 (2,3,5way) > 수동제어 밸브
Clippard 사는 미국 소형 공압부품 전문 제조사입니다.
70년 넘는 기간 동안 꾸준하게 축적해온 공압 기술들이 모든 제품에 녹아 있습니다.

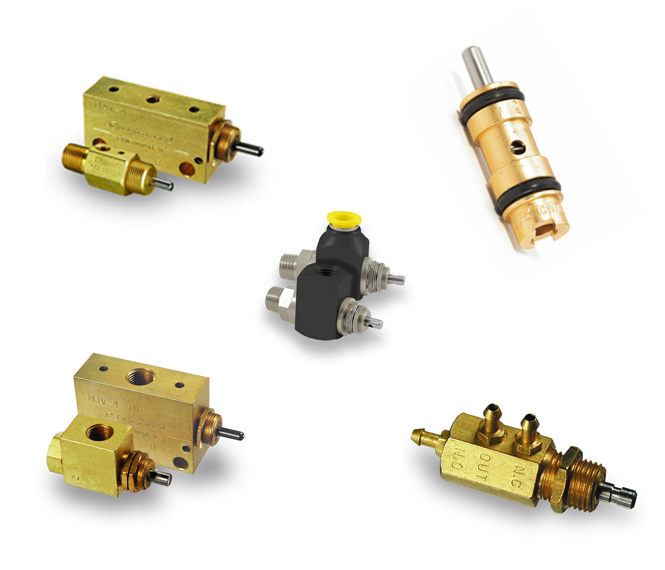

사용자가 편리하게 사용할 수 있는 다양한 수동 방향제어 밸브들을 제공하고 있습니다.
GTV-2 Poppet 67 scfm 1/4” NPT 1/4” NPT - ▲ ▲ 123
GTV-2Q Poppet 67 scfm 1/4” NPT 1/4” NPT - ▲ ▲ 123
GTV-2-P12 Poppet 67 scfm 3/8” PQ 3/8” PQ - ▲ ▲ 123
GTV-2Q-P12 Poppet 67 scfm 1/4” NPT 3/8” PQ - ▲ ▲ 123
MTV-2 Poppet 7.3 scfm #10-32 #10-32 - ▲ D ▲ 116
MTV-2P Poppet 7.3 scfm 1/8” NPT #10-32 - ▲ D ▲ 116
TV-2S Spool 8 scfm #10-32 #10-32 - ▲ D ▲ 115
TV-2SF Spool 8 scfm #10-32 #10-32 - ▲ D ▲ 115
TV-2SP Spool 8 scfm 1/8” NPT #10-32 - ▲ D ▲ 115
TV-2SFP Spool 8 scfm 1/8” NPT #10-32 - ▲ D ▲ 115
TV-2M Poppet 8 scfm #10-32 #10-32 - ▲ M ▲ 115
TV-2MF Poppet 8 scfm #10-32 #10-32 - ▲ M ▲ 115
TV-2MP Poppet 6.8 scfm 1/8” NPT #10-32 - ▲ M ▲ 115
TV-2MFP Poppet 6.8 scfm 1/8” NPT #10-32 - ▲ M ▲ 115
TVO-2M Spool 8 scfm #10-32 #10-32 - ▲ M ▲ 115
TVO-2MF Spool 8 scfm #10-32 #10-32 - ▲ M ▲ 115
TVO-2MP Spool 6.8 scfm 1/8” NPT #10-32 - ▲ M ▲ 115
TVO-2MFP Spool 6.8 scfm 1/8” NPT #10-32 - ▲ M ▲ 115
GV-2 Poppet 67 scfm 1/4” NPT 1/4” NPT - ▲ 123
GV-2Q Poppet 67 scfm 1/4” NPT 1/4” NPT - ▲ 123
GV-2Q-P12 Poppet 67 scfm 1/4” NPT 3/8” PQ - ▲ 123
GV-2-P12 Poppet 67 scfm 3/8” PQ 3/8” PQ - ▲ 123
GV-2C Poppet 67 scfm Cartridge Cartridge - ▲ 123
MAV-2 Poppet 6.8 scfm #10-32 #10-32 - ▲ 112
MAV-2P Poppet 6.8 scfm 1/8” NPT #10-32 - ▲ 112
MAV-2C Poppet 6 scfm Cartridge Cartridge - ▲ 112
MJV-2C Poppet 22 scfm Cartridge Cartridge - ▲ 113
MAV-2R Poppet 6.8 scfm #10-32 #10-32 - ▲ 112
MAVO-2 Spool 10 scfm #10-32 #10-32 - ▲ 112
MAVO-2P Spool 10 scfm 1/8” NPT #10-32 - ▲ 112
MAVO-2C Spool 10 scfm Cartridge Cartridge - ▲ 113
MJV-2 Poppet 25 scfm 1/8” NPT 1/8” NPT - ▲ 114
MJVO-2 Spool 12 scfm 1/8” NPT 1/8” NPT - ▲ 114
MJVO-2C Spool 15 scfm Cartridge Cartridge - ▲ 114
PAV-2 Poppet 6.8 scfm #10-32 #10-32 - ▲ 117
PAV-2P Poppet 6.8 scfm 1/8” NPT #10-32 - ▲ 117
PAVO-2 Spool 11.6 scfm #10-32 #10-32 - ▲ 117
PAVO-2P Spool 11.6 scfm 1/8” NPY #10-32 - ▲ 117
FTV-3 Spool 10 scfm #10-32 #10-32 #10-32 ▲ D ▲ 121
FTV-3F Spool 10 scfm #10-32 #10-32 #10-32 ▲ D ▲ 121
FTV-3P Spool 10.5 scfm 1/8” NPT 1/8” NPT 1/8” NPT ▲ D ▲ 121
FTV-3FP Spool 10.5 scfm 1/8” NPT 1/8” NPT 1/8” NPT ▲ D ▲ 121
GTV-3 Poppet 67 scfm 1/4” NPT 1/4” NPT hole in body ▲ ▲ 123
GTV-3Q Poppet 67 scfm 1/4” NPT 1/4” NPT hole in body ▲ ▲ 123
GTV-3-P12 Poppet 67 scfm 3/8” PQ 3/8” PQ hole in body ▲ ▲ 123
GTV-3Q-P12 Poppet 67 scfm 1/4” NPT 3/8” PQ hole in body ▲ ▲ 123
HTV-3 Spool 11.8 scfm #10-32 #10-32 hole in body ▲ ▲ ▲ 122
HTV-3F Spool 11.8 scfm #10-32 #10-32 hole in body ▲ ▲ ▲ 122
HTV-3C Cartridge 11.8 scfm Cartridge Cartridge hole in body ▲ ▲ ▲ 122
HTV-3CF Cartridge 11.8 scfm Cartridge Cartridge hole in body ▲ ▲ ▲ 122
MTV-3 Poppet 7 scfm #10-32 #10-32 #10-32 ▲ D ▲ 116
MTV-3P Poppet 7 scfm 1/8” NPT #10-32 #10-32 ▲ D ▲ 116
MJTV-3 Poppet 25 scfm 1/8” NPT 1/8” NPT 1/8” NPT ▲ D ▲ 118
TV-3S Spool 8 scfm #10-32 #10-32 hole in body ▲ D ▲ 124
TV-3SF Spool 8 scfm #10-32 #10-32 hole in body ▲ D ▲ 124
TV-3SP Spool 8 scfm 1/8” NPT #10-32 hole in body ▲ D ▲ 124
TV-3SFP Spool 8 scfm 1/8” NPT #10-32 hole in body ▲ D ▲ 124
TV-3M Poppet 6.8 scfm #10-32 #10-32 hole in body ▲ M ▲ 124
TV-3MF Poppet 6.8 scfm #10-32 #10-32 hole in body ▲ M ▲ 124
TV-3MP Poppet 6.8 scfm 1/8” NPT #10-32 hole in body ▲ M ▲ 124
TV-3MFP Poppet 6.8 scfm 1/8” NPT #10-32 hole in body ▲ M ▲ 124
TVO-3M Spool 6.8 scfm #10-32 #10-32 hole in body ▲ M ▲ 124
TVO-3MF Spool 6.8 scfm #10-32 #10-32 hole in body ▲ M ▲ 124
TVO-3MP Spool 6.8 scfm 1/8” NPT #10-32 hole in body ▲ M ▲ 124
TVO-3MFP Spool 6.8 scfm 1/8” NPT #10-32 hole in body ▲ M ▲ 124
SMTV-3 Spool 1.4 scfm #3-56* #3-56* hole in body ▲ ▲ D ▲ 111
FV-3 Spool 10 scfm #10-32 #10-32 #10-32 ▲ ▲ 119
FV-3D Spool 10 scfm #10-32 #10-32 #10-32 ▲ ▲ 119
FV-3DP Spool 10.5 scfm 1/8” NPT 1/8” NPT 1/8” NPT ▲ ▲ 119
FV-3P Spool 10.5 scfm 1/8” NPT 1/8” NPT 1/8” NPT ▲ ▲ 119
GV-3 Poppet 67 scfm 1/4” NPT 1/4” NPT hole in stem ▲ 123
GV-3Q Poppet 67 scfm 1/4” NPT 1/4” NPT hole in stem ▲ 123
GV-3-P12 Poppet 67 scfm 3/8” PQ 3/8” PQ hole in stem ▲ 123
GV-3Q-P12 Poppet 67 scfm 1/4” NPT 3/8” PQ hole in stem ▲ 123
GV-3C Poppet 67 scfm Cartridge Cartridge hole in stem ▲ 123
HV-3 Spool 11.8 scfm #10-32 #10-32 hole in body ▲ 122
HV-3C Cartridge 11.8 scfm Cartridge Cartridge hole in body ▲ ▲ 122
MAV-3 Poppet 6.8 scfm #10-32 #10-32 through stem ▲ 112
MAV-3P Poppet 6.8 scfm 1/8” NPT #10-32 through stem ▲ 112
MAV-3C Poppet 6 scfm Cartridge Cartridge through stem ▲ 113
MAV-3R Poppet 6.8 scfm #10-32 #10-32 through stem ▲ 112
MAVO-3 Spool 10 scfm #10-32 #10-32 holes in body ▲ 112
MAVO-3P Spool 10 scfm 1/8” NPT #10-32 holes in body ▲ 112
MAVO-3C Spool 10 scfm Cartridge Cartridge holes in body ▲ 113
MJV-3 Poppet 25 scfm 1/8” NPT 1/8” NPT through stem ▲ 114
MJV-3C Poppet 22 scfm Cartridge Cartridge through stem ▲ 114
MJVO-3 Spool 12 scfm 1/8” NPT 1/8” NPT holes in body ▲ 114
MJVO-3C Spool 15 scfm Cartridge Cartridge holes in body ▲ 114
SMAV-3 Spool 1.4 scfm #3-56 #3-56 #3-56 ▲ ▲ 111
PAV-3 Poppet 6.8 scfm #10-32 #10-32 holes in body ▲ 117
PAV-3P Poppet 6.8 scfm 1/8” NPT #10-32 holes in body ▲ 117
PAVO-3 Spool 11.6 scfm #10-32 #10-32 holes in body ▲ 117
PAVO-3P Spool 11.6 scfm 1/8” NPT #10-32 holes in body ▲ 117
HTV-4 Spool 11.8 scfm #10-32 #10-32 atmos. or hole ▲ ▲ 122
HTV-4F Spool 11.8 scfm #10-32 #10-32 atmos. or hole ▲ ▲ 122
HTV-4C Cartridge 11.8 scfm Cartridge Cartridge atmos. or hole ▲ ▲ 122
HTV-4CF Cartridge 11.8 scfm Cartridge Cartridge atmos. or hole ▲ ▲ 122
TV-4D Spool 7.5 scfm #10-32 #10-32 holes in body ▲ D ▲ ▲ 124
TV-4M Spool 7.5 scfm #10-32 #10-32 holes in body ▲ D ▲ ▲ 124
TV-4DM Spool 7.5 scfm #10-32 #10-32 holes in body ▲ D ▲ ▲ 124
TV-4DP Spool 7.5 scfm 1/8” NPT 1/8” NPT holes in body ▲ D ▲ ▲ 124
TV-4MP Spool 7.5 scfm 1/8” NPT 1/8” NPT holes in body ▲ D ▲ ▲ 124
TV-4DMP Spool 7.5 scfm 1/8” NPT 1/8” NPT holes in body ▲ D ▲ ▲ 124
MTV-4 Spool 10 scfm #10-32 #10-32 holes in body ▲ ▲ D ▲ 116
MTV-4F Spool 10 scfm #10-32 #10-32 holes in body ▲ ▲ D ▲ 116
MJTV-4 Spool 10.5 scfm 1/8” NPT 1/8” NPT holes in body ▲ ▲ D ▲ 118
MJTV-4F Spool 10.5 scfm 1/8” NPT 1/8” NPT holes in body ▲ ▲ D ▲ 118
MTV-5 Spool 10 scfm #10-32 #10-32 #10-32 ▲ ▲ D ▲ 118
MTV-5F Spool 10 scfm #10-32 #10-32 #10-32 ▲ ▲ D ▲ 118
MJTV-5 Spool 10.5 scfm 1/8” NPT 1/8” NPT 1/8” NPT ▲ ▲ D ▲ 118
MJTV-5F Spool 10.5 scfm 1/8” NPT 1/8” NPT 1/8” NPT ▲ ▲ D ▲ 118
MAV-4 Spool 8.5 scfm #10-32 #10-32 holes in body ▲ ▲ 112
MAV-4D Spool 8.5 scfm #10-32 #10-32 holes in body ▲ ▲ 112
MJV-4 Spool 14 scfm 1/8” NPT 1/8” NPT holes in body ▲ ▲ 112
MJV-4D Spool 14 scfm 1/8” NPT 1/8” NPT holes in body ▲ ▲ 112
FV-4 Spool 10 scfm #10-32 #10-32 holes in body ▲ ▲ 119
FV-4P Spool 10.5 scfm 1/8” NPT 1/8” NPT holes in body ▲ ▲ 120
FV-4D Spool 10 scfm #10-32 #10-32 holes in body ▲ ▲ 119
FV-4DP Spool 10.5 scfm 1/8” NPT 1/8” NPT holes in body ▲ ▲ 120
FV-5 Spool 10 scfm #10-32 #10-32 #10-32 ▲ ▲ 120
FV-5P Spool 10.5 scfm 1/8” NPT 1/8” NPT 1/8” NPT ▲ ▲ 120
FV-5D Spool 10 scfm #10-32 #10-32 #10-32 ▲ ▲ 120
FV-5DP Spool 10.5 scfm 1/8” NPT 1/8” NPT 1/8” NPT ▲ ▲ 120
HV-4 Spool 11.8 scfm #10-32 #10-32 atmosphere ▲ ▲ 122
HV-4C Cartridge 11.8 scfm Cartridge Cartridge atmosphere ▲ ▲ 122
